Immersive and extended reality solutions have become a crucial component of industries ranging from scientific research and engineering to entertainment and training simulations. A seamless, high-fidelity visualization experience requires system integration of multiple complex technologies, all purpose-designed and working in perfect harmony. This paper outlines the fundamental components necessary for a high-quality immersive, extended reality visualization system. It addresses immersive experience challenges such as display synchronization, real-time rendering performance, user motion tracking accuracy, and content workflow optimization.

Synchronizing Displays and Multi-GPU Rendering

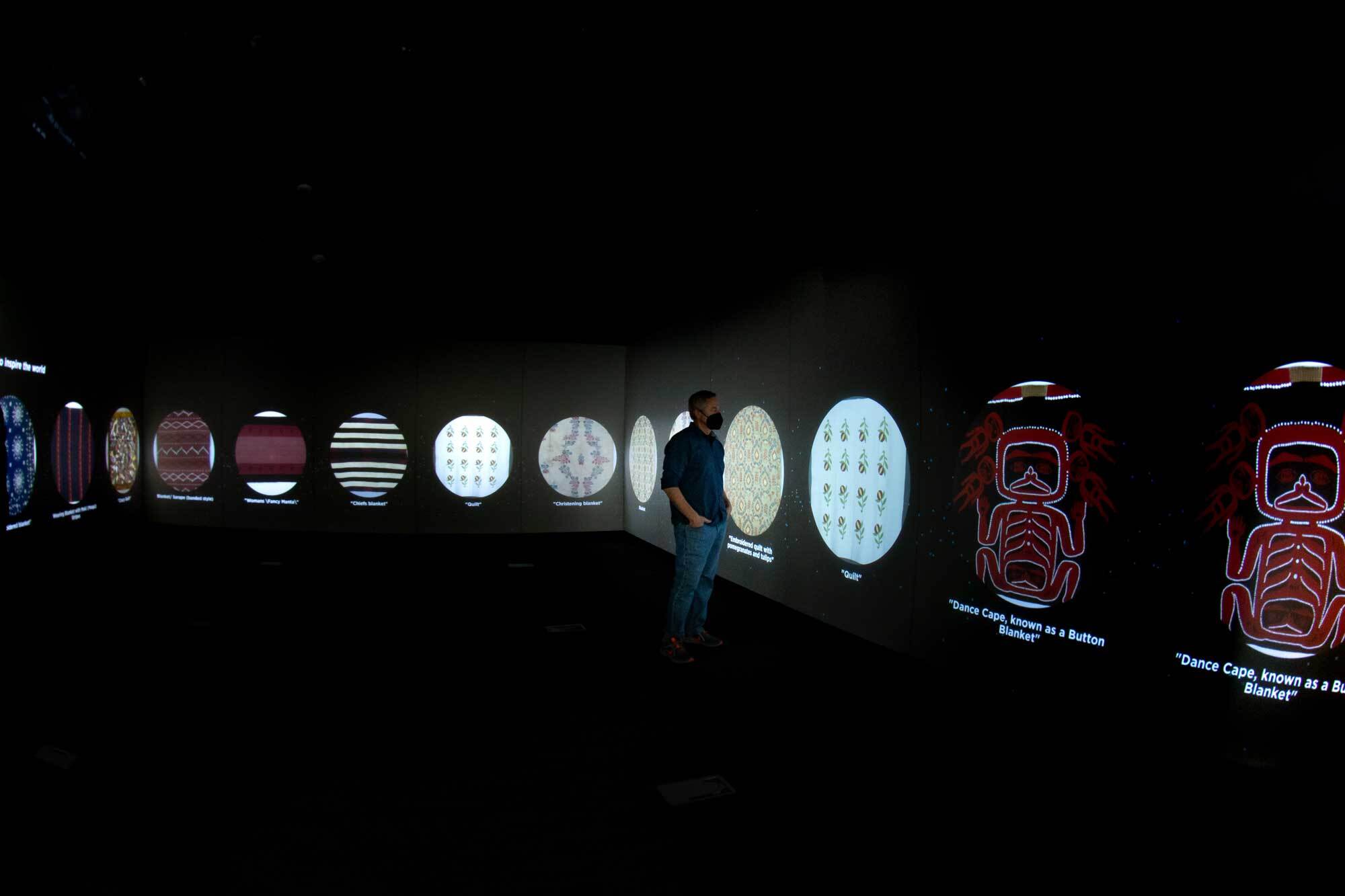

A large-scale visualization system often consists of multiple high-resolution displays, whether they are projection-based or tiled LCD/LED panels. For a consistent and cohesive experience, it is critical to ensure:

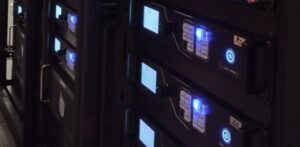

• Multi-GPU (Graphics Processing Unit) and Cluster Rendering: Solutions like NVIDIA Quadro Sync, AMD Synchronized GPUs, or distributed rendering frameworks such as Synchronous Graphics Clusters help divide and distribute the workload across multiple GPUs while maintaining real-time performance. Multi-gpu rendering for high frame rate VR is supported through Hi-PerXR™️ systems.
• Frame Synchronization: All displays must render and refresh frames at precisely the same time to avoid tearing and artifacts.
• Genlocking and Framelocking: Using hardware and software solutions to synchronize GPUs and displays ensures frame timing consistency across multiple outputs and inputs.

Matching Screen Geometry to Workflow and Use Case

The physical layout and geometry of the visualization system must align with the intended workflow and use cases. This ensures an optimal viewing experience and usability for varied users and their applications. Key factors include:

• Screen Size and Aspect Ratio: For applications like 1:1 design review in engineering and architecture, the screen should be large enough to display objects at their true physical scale.

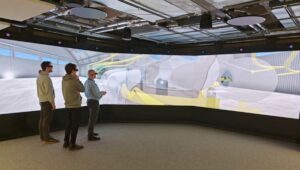

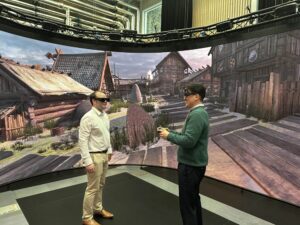

• Curved vs. Flat Screens: Curved screens can enhance immersion and reduce distortion in wrap-around environments, while flat screens may be preferable for certain precision applications. Some systems use a curved screen to create an immersive feel without using stereoscopic 3D/virtual reality (VR) viewing, which may add great value to some data.

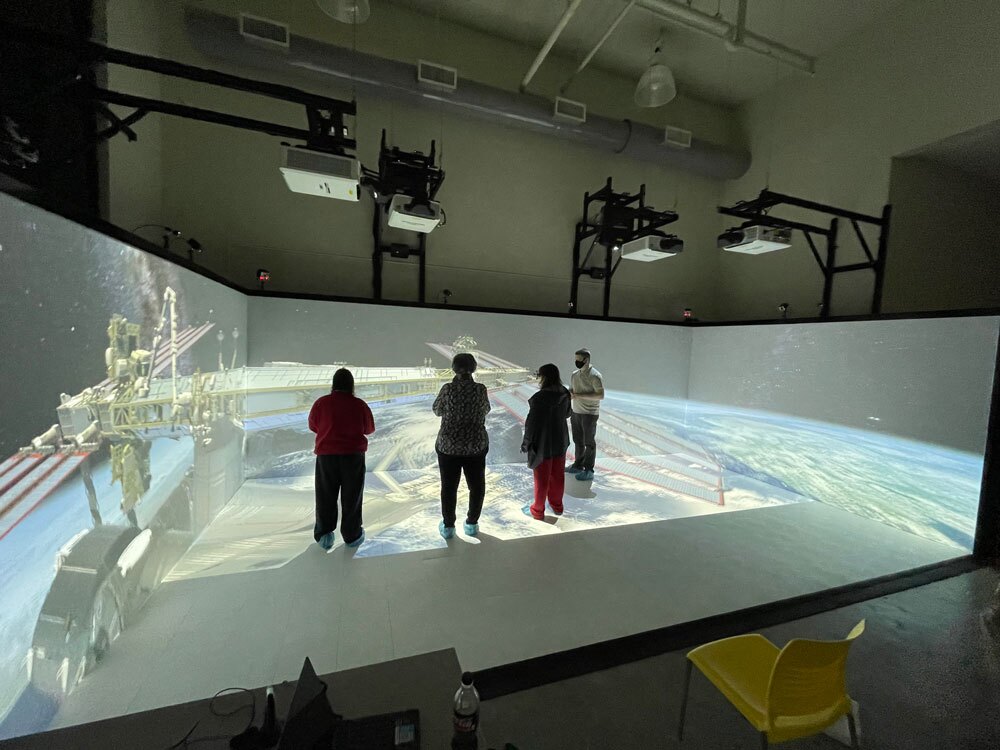

• Projection or Direct Display: The choice between rear-projection, front-projection, and direct LED/LCD displays affects brightness, resolution, and space considerations. Autostereoscopic/glasses-less VR systems are available but in small screen configurations.
• Ergonomics and Viewing Angles: Ensuring that content remains clearly visible from all key user positions without excessive distortion or eye strain.

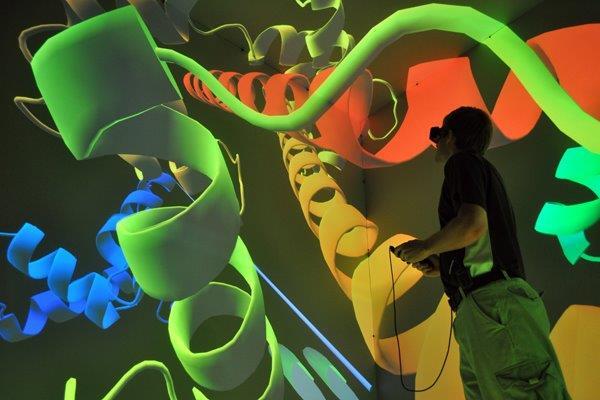

• Software Compatibility with Display Configuration: Ensuring that the software being used can support the desired display configuration. If the software is limited to standard resolutions or aspect ratios, additional plugins and software tools may be required to enhance adoption and usability. As an example, not all software works in large video wall and CAVE (Cave Automatic Virtual Environment) VR systems.

High Frame Rate 3D Rendering

To create an engaging and comfortable immersive experience, achieving and maintaining a high frame rate is paramount. Low frame rates and latency can cause motion sickness (cybersickness), particularly in VR and CAVE systems. Best practices include:

• Optimized Rendering Pipelines: Leveraging techniques such as Level of Detail (LoD), occlusion culling, and frame interpolation to maximize rendering efficiency.
• Frame Rate Targets: Maintaining a minimum of 90 Hz for VR and 60+ Hz for large-scale projection environments.
• Latency Reduction: Implementing predictive tracking, low-latency graphics pipelines, and time warp techniques to reduce perceived lag and improve user comfort.

Motion Tracking and Calibration

Accurate and low-latency tracking of a user’s motion is essential for immersive VR applications, especially when integrating head tracking, hand tracking, and full-body interactions. Key considerations for large-scale immersive visualization system calibration include:

• Tracking Technology Selection: Optical (e.g., Vicon, OptiTrack), electromagnetic, or inertial-based tracking, each with its strengths and weaknesses.
• Calibration and Drift Correction: Regularly calibrating sensors and applying drift compensation algorithms to maintain precise tracking over time.
• Latency and Jitter Reduction: Implementing predictive filtering and sensor fusion techniques to ensure smooth and natural user interactions.

Advanced Interaction Technologies

Beyond traditional motion tracking, many immersive solutions require advanced interaction technologies to enhance realism and user engagement. Key areas of expertise include:

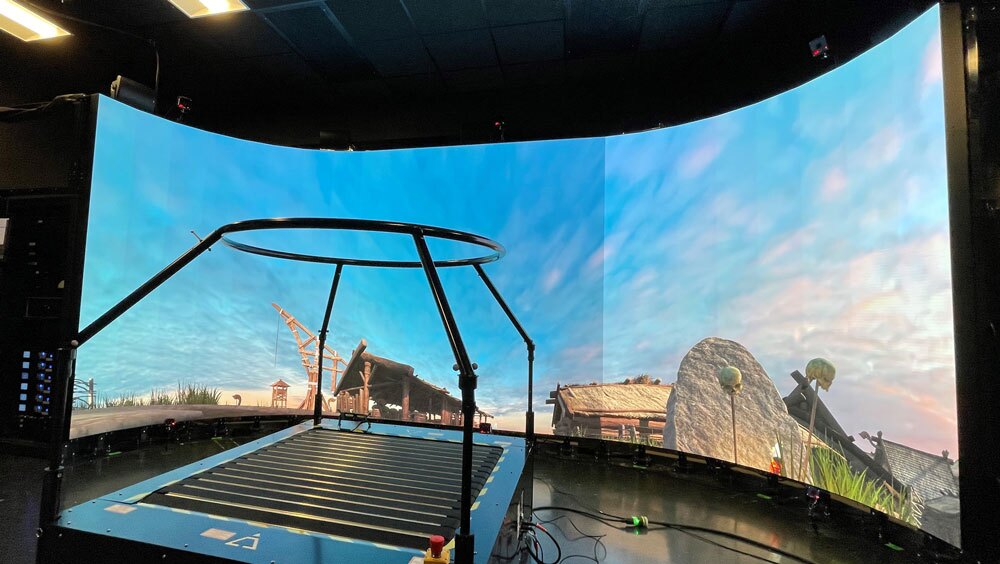

• Motion Bases and Haptic Feedback: Motion platforms and haptic devices provide users with tactile and physical sensations synchronized with the visual experience.
• Biometric Data Capture: Integrating physiological sensors to monitor user responses to on-screen occurrences in real-time. This enables adaptive environments and personalized experiences.
• Multimodal Interaction: Combining voice recognition, gesture tracking, and gaze-based controls to create intuitive and immersive user interactions.
• Integration of Wearable Technologies: Ensuring seamless connectivity with AR/VR headsets, exoskeletons, and other wearable input/output devices.

Content Workflow Optimization

The process of creating, optimizing, and delivering immersive content deployment should be as seamless as possible. A well-defined content pipeline ensures efficiency and scalability. Key workflow elements include:

• Content Creation Tools: Utilizing 3D modeling, game engines (e.g., Unity, Unreal Engine), and data visualization platforms.
• Asset Optimization: Applying compression, mesh simplification, and real-time rendering techniques to ensure smooth performance.
• Automated Deployment: Using standardized formats and automated content ingestion to reduce manual intervention in preparing presentations.
• Version Control and Iteration: Establishing processes to track changes and improvements in content development for continuous enhancement.

Designing, building and maintaining a large-scale immersive visualization solution requires the convergence of multiple specialized technologies. From synchronized rendering to precise motion tracking and streamlined content workflows, every component plays a vital role in delivering a high-quality experience. A high degree of experience is required to address these systems holistically, creating reliable, scalable, and immersive extended reality environments that push the boundaries of visualization and interaction.
